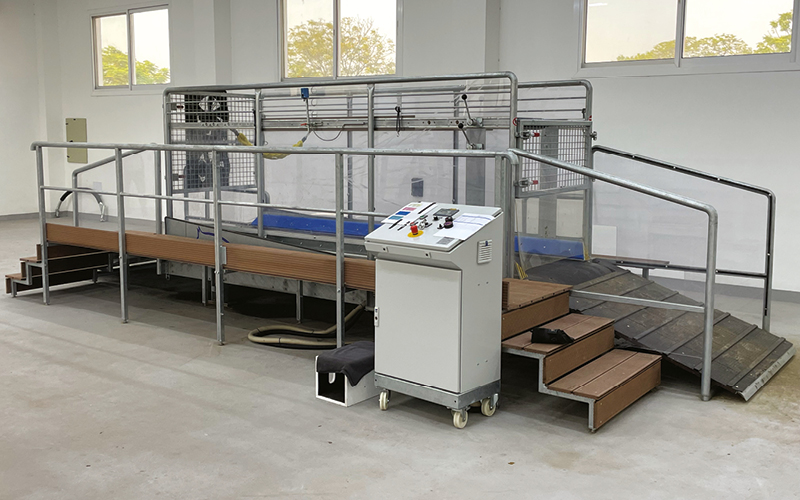

High-speed treadmill systems for professional performance facilities
The Race Line is the Horse Gym horse gallop treadmill range supplied by Equine Health Centre. It is designed for racing yards, elite sport horse facilities and professional performance environments that require controlled high-speed treadmill work.
A horse gallop treadmill is a specialist system. It requires careful consideration of speed range, space, electrical supply, operator experience, safety features and long-term maintenance. The Race Line range includes three models: R1 Comfort, R2 Speed and R3 High Speed.
Equine Health Centre works with clients in the UK and UAE to help specify the right Race Line model for the horses, facility and intended use.
What is a horse gallop treadmill?
A horse gallop treadmill is an equine treadmill designed for controlled work at higher speeds, including gallop exercise. It allows the operator to manage speed, duration and incline in a repeatable environment, with the horse working without a rider or tack.
Unlike a walking treadmill or trot treadmill, a horse gallop treadmill is built for higher-speed professional use. It is most relevant where a facility needs controlled gallop work as part of a structured training routine.
Facilities requiring lower-speed walk exercise should compare the Stride Line. Facilities requiring controlled trot work should consider the Power Line.
Race Line models
The Race Line range includes three Horse Gym gallop treadmill models.
The right model will depend on the intended speed range, the size of horses using the treadmill, available infrastructure, operator experience and the level of specification required.
Race Line R1 Comfort
The Race Line R1 Comfort is the first model in the Horse Gym gallop treadmill range, with a maximum speed of approximately 45 km/h.
Race Line gallop treadmills suitable for professional facilities that require controlled gallop work but do not need the higher maximum speed of the R2 or R3.
Race Line R1 Comfort key features include:
- two ramps with lifting aids
- breast belt, two ties and rear bar
- front bar
- long rails for ramps
- electric incline adjustment
- observation stand (90cm width)
- additional small control at the front
- lubrication monitoring
- distance measurement
- accurate incline
- automatic monitoring system
- start delay and soft stop
- half-speed limit safety switch
The R1 Comfort has an engine power of approximately 16 kW, an approximate weight of 2,400 kg and requires a 40A, 400V, 3-phase power supply.
Race Line R2 Speed
The Race Line R2 Speed is the middle model in the Race Line range, with a maximum speed of approximately 50 km/h.
The R2 is suitable for performance-focused facilities that require a higher maximum speed than the R1 Comfort, while not requiring the full 70 km/h capability of the R3 High Speed.
Race Line R2 Speed key features include:
- two ramps with lifting aids
- breast belt, two ties and rear bar
- front bar
- long rails for ramps
- electric incline adjustment
- observation stand (90cm width)
- additional small control at the front
- lubrication monitoring
- distance measurement
- accurate incline
- automatic monitoring system
- start delay and soft stop
- half-speed limit safety switch
The R2 Speed has an engine power of approximately 22 kW, an approximate weight of 2,400 kg and requires a 40A, 400V, 3-phase power supply.
Key features of the Race Line gallop treadmills
The Race Line range is designed for high-speed controlled gallop treadmill work in professional environments.
Depending on the model selected, Race Line features include:
- double-frame system
- two long ramps
- long ramp rails
- front bar
- electric incline adjustment up to 10%
- gradual speed adjustment
- manual programming for individual training routines
- optional installation of nine programmes
- observation stand (90cm width)
- additional small control at the front
- lubrication monitoring
- distance measurement
- accurate incline
- automatic monitoring system
- start delay and soft stop
- half-speed limit safety switch
Optional
- mesh doors front and rear
- harness suspension on R1 and R2 (standard on R3)
- harness suspension as standard on R3
- 1 m wide running surface as standard on R3
The Race Line also includes soft start and soft stop, allowing smoother transitions when beginning or ending a session.
Horse gallop treadmill technical snapshot
Observation Stand: 90cm width as standard. 6.98m long with steps, and 0.57m high
Technical details should be confirmed with EHC before purchase, site preparation or installation planning.
Speak to EHC about Race Line planning and specification
The most suitable Race Line model will depend on the intended speed range, the horses using the treadmill, available space, electrical supply, site layout, operator experience and maintenance requirements.
Contact Equine Health Centre to discuss Race Line gallop treadmills and the right specification for your performance-focused training facility.
